Image format

BMP 24 bit, BMP 32 bit, TIFF 24 bit, TIFF 32 bit, TIFF 32 bit LZW, PNG 8 bit, PNG 32 bit

File name

The name of the special text script file, which contains the In- and Out-cues, image placement, subtitled material title and other information.

Write full path

When this option is checked, the image file names in the script file are specified with their full path, e.g. D:\DVD Samples\Sample_0001.PNG.

If this option is not checked, only the file name with extension will be used: Sample_0001.PNG.

Image file prefix

The text value in this field together with the subsequent subtitle numbers forms individual image names.

In the above figure the image names will be: Sample_0001.PNG, Sample_0002.PNG and so on.

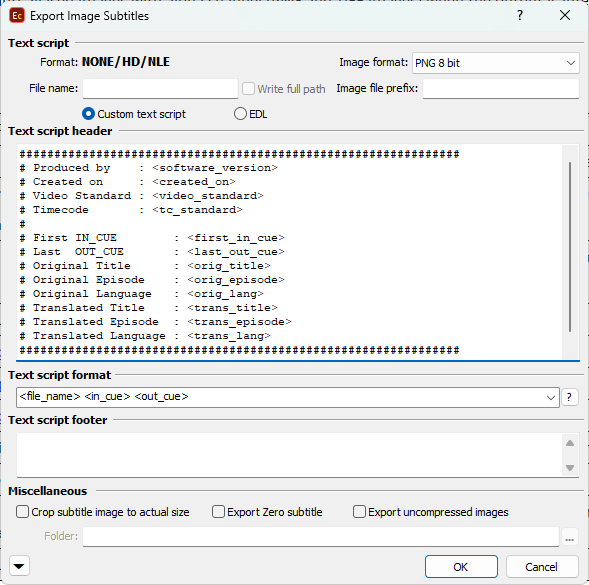

Custom Text Script / EDL

Selects the output of the exported file: Custom Text Format or EDL.

Text script header

See the Text script Header section below.

Text script format

See the Text Script Format (Individual lines) section below.

Text script footer

See the Text script Footer section below.

Crop subtitle image to actual size

This option specifies that output images will be reduced to the size defined by the area occupied by the subtitle text. Tick off to export full-sized images instead.

Export Zero Subtitle

Switch it on if you want to export the zero subtitle.

Export uncompressed images

By default the script and image files will be exported in a .zip archive which is more convenient for a number of reason. If you need to export and use the images from a local folder, make sure to tick off this option instead.

Folder

Selects the output folder for the exported script and image files.

Additional options

Provides a few more options:

Preview Text Script - Displays a preview window with the exported script's body.

Preview images - Opens a preview window and shows how the image will look like.

Save Template - Allows you to save your custom script in a template file for later use.

Load Template - Allows you to open a template of a previously created custom script.

Set default values - Restores the default Output Colors and attributes for the selected DVD systems or automatically loads the default custom text script template.

<first_in_cue>, <last_out_cue>

Indicate first subtitles' in- and last subtitles' out-cue. The cues are expressed as SMPTE timecode HH:MM:SS:FF by default , but the timing expression can be changed.

"hh:mm:ss:ff", "hh:mm:ss.ff", "hh:mm:ss.nn", "hh:mm:ss.nnn", "ms", "frames", etc., where:

hh - hours, mm - minutes, ss - seconds, ff - frames, nnn - miliseconds, nn - 10 miliseconds (1/100 seconds),
ms - the whole time is in miliseconds, frames - the whole time is in frames,
feet - used to specify 35mm feet/frames timecode. Must be followed by a separator ("+", "." ...) and frames. 1 feet = 16 frames.

<video_standard>

The video format: PAL, NTSC, etc.

<tc_standard>

The timecode format used: 25fps, 30fps DROP_FRAME, 30fps NON_DROP, 24fps

<created_on>

The date and time when the file was exported.

<programme_start_tc>

Saves program's start timecode as read from .ezt or .eztxml files or chooses the closest hour depending on first subtitle's in-cue when converting from other sources or program's start TC isn't available.

<software_version>

String in the following form: "EZConvert 7.0.1 Ultimate".

<directory>

The folder where the scrip is exported.

<orig_title>
<orig_episode>
<orig_lang>
<trans_title>
<trans_episode>
<trans_lang>

The corresponding parameters read as part of the Translation Metadata.

<in_cue>,
<out_cue>

Subtitles’ in- and out-cues. The cues are expressed as SMPTE timecode HH:MM:SS:FF by default , but the timing expression can be changed.

"hh:mm:ss:ff", "hh:mm:ss.ff", "hh:mm:ss.nn", "hh:mm:ss.nnn", "ms", "frames", etc., where:

hh - hours, mm - minutes, ss - seconds, ff - frames, nnn - miliseconds, nn - 10 miliseconds (1/100 seconds),
ms - the whole time is in miliseconds, frames - the whole time is in frames,
feet - used to specify 35mm feet/frames timecode. Must be followed by a separator ("+", "." ...) and frames. 1 feet = 16 frames.

<dur>

Subtitles' duration expressed as SS:FF by default. Timing expression can be changed following the above timing patterns.

<num>

Sequential number, starting from 1. You can also specify number of digits and width. If the number is shorter than the width it is right aligned by spaces. If the number contains less than specified number of digits, leading zeros are inserted. Thus if you enter <num:4> the result will look like: “0024”, <num:4:6> will produce: “  0024”.

<sttl_num>

Subtitle number as it is in EZConvert, and not the sequential number of the image. Can contain numbers and a letter. For example, if a subtitle is split in EZTitles, the new subtitle is created with the same number, concatenated with the letter “a”.

<file_name>

The name of the image file. The file names are created from the image file prefix and the sequential number of the subtitle.

<left>
<top>
<right>
<bottom>
<width>
<height>

These are used to specify image's placement on the screen and represent the exact offset in pixels "px" from the respective edge.

<new_line>

New line: CR/LF

<tab>

Tab character is inserted.

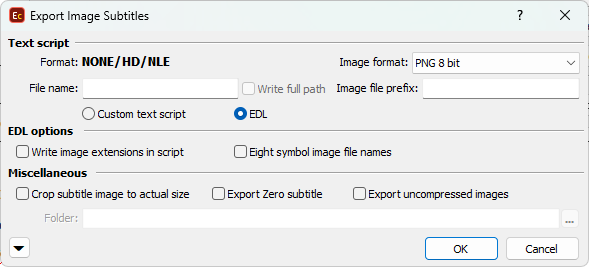

Write image extension in script

Saves image file's extension in the .EDL script: .png, .bmp, .tiff.

Eight symbol image file names

Reduces the name of the images to exactly 8 characters.
