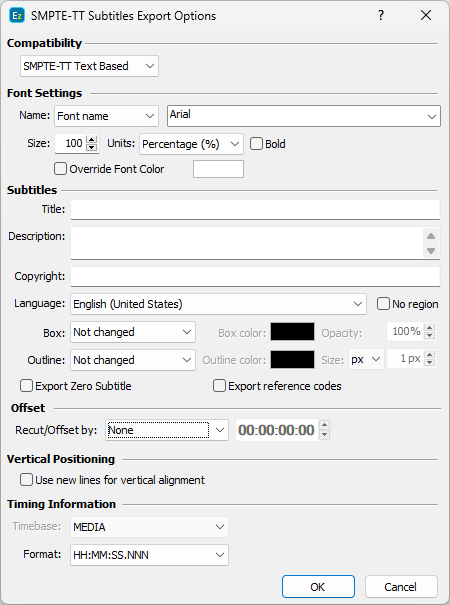

Font Name

Allows you select specific Font or rather choose Generic Name of the font family.

Font Settings

Here you can specify the font attributes. The size is measured in pixels by default but you can change it to be in Ems or Percentage.

Note: We highly recommend using the exact same values, when the font size is expressed in pixels, as set in the Project Settings or specifying the size as 100%. Font size is part of the calculations for the horizontal/vertical position and if not filled in accordingly will lead to incorrectly positioned text later.

Title and Language

The fields are automatically filled with the appropriate values from the file details if the source subtitle file is an .EZT.

No Region

The language identifier tag consists of two parts Language ID + Country ID. For example, if we select "English (United States)" from the drop-down, the corresponding language tag will be: xml:lang="en-US".
For compliance with other applications or equipment, however, only the Language ID may be required. In this case, activating the No Region checkbox will output the following: xml:lang="en".

Recut/Offset

Allows you to Recut/Offset the subtitles during the export. This may be required for subtitle projects that do not start from 00:00:00:00, they are offset by an hour or more. Most video players assume the video always plays from 00:00:00:00 which creates synch issues with subtitles that are offset.

From the drop-down menu you can choose between the following options:

None - doesn't recut or offset the subtitles and they will be exported with their original timing.

Manual - allows you manually specify the offset for the recut.

Auto - automatically offsets the timing using the first subtitle's In-cue. All timecodes are offset backward with the first subtitle's In-cue rounded down to the closes hour. For example if the first subtitle originally starts at 10:00:32:21 after applying the recut it's start time will become 00:00:32:21.

Programme Start TC - automatically subtracts the value of the Programme Start TimeCode parameter saved in the Details. Programme Start TC can be selected from Video/Setup Timecode with a video opened in.

Video Start TC - automatically gets video's start time as specified in Video/Setup Timecode. This option can be used only when a video is loaded in.

Box subtitles

By selecting the No Change option for the Box effect, the subtitles will be saved as they were originally created in EZTitles. But using the dedicated "Boxed" option will apply the effect to all subtitles in the output file and will also allow you to choose a Color for it as well as opacity. Opacity value of 0% mean that the box will appear fully opaque, while value of 100% will be fully transparent.

Outline

By turning this on you can specify the size of the outline effect in pixels as well as it designated color.

Export Zero Subtitle

Click it if you want to include the zero subtitle in the exported file.

Export reference codes

Instruct the program to export all non-Latin symbols with their reference codes i.e. "å".

Use new lines for vertical alignment

This option is intended for compatibility reasons only and will keep the vertical position of the text by inserting empty lines below the text.

By default text's vertical position will be exported using the "tts:DisplayAlign" attribute.

Timing Format

Specifies how the time is expressed in the output file. By specifications the time base should always be Media, i.e ttp:timeBase="media", and the available time expression options are as follows: HH:MM:SS:FF, HH:MM:SS.NN (10 miliseconds), HH:MM:SS.NNN(miliseconds), Frames, Seconds, Miliseconds and Ticks.
