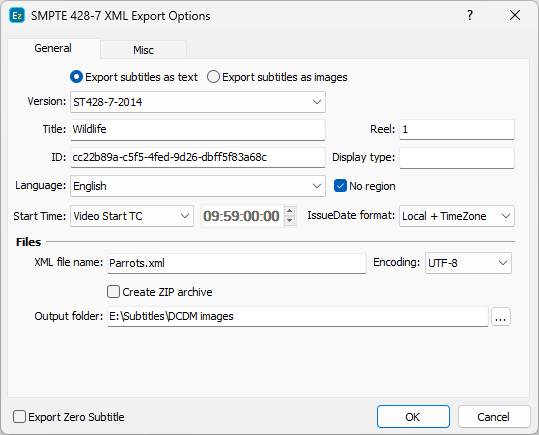

Export subtitles as text
Export subtitles as images

You can export the subtitles as text or as images. The image file format is PNG with transparency (alpha).

In the Files section described later you can specify the way the images file names are formatted.

Version

Changes the document version for the exported file. Horizontal Scaling and Spacing are not supported by the ST428-7-2007 version of the standard and are supported by ST428-7-2010 and ST428-7-2014 editions.

Title, ID, Reel

Here you can specify some general information. The subtitles ID is generated automatically, but you can override it if you want to enter certain ID of your choice.

Title and Reel fields will automatically be filled in with the contents of the Title and Reel/Code fields from the file's details.

Language

Language will be filled automatically from file's details or it can be selected manually from the list. By default, the language is specified by its RFC code ("en" for English, "es" for Spanish, "fr" for French) and so on.

No Region

Turning No Region off will change the default language indication in the output file to Language + Region/Country code. For example, French will become "fr-fr", Spanish (Argentina) will become "es-AR" and so on.

Start Time

By specification the first subtitle's In Cue shall always be greater or equal than the specified StartTime. From the drop-down menu you can choose between the following options:

None - the StartTime attribute will not be saved in the output file.

Manual - allows you manually type in the needed timecode.

Auto - automatically sets Start Time using the first subtitle's In-cue rounded down to the closes hour. For example, if the first subtitle starts at 10:00:32:21, the Star Time value will be automatically set to 10:00:00:00.

Programme Start TC - automatically uses the value of the Programme Start TimeCode parameter saved in the Details. Programme Start TC can be selected from Video/Setup Timecode with a video opened in.

Video Start TC - automatically gets video's start time as specified in Video/Setup Timecode. This option can be used only when a video is loaded in.

IssueDate format

Allows the time format for the IssueDate parameter to be changed, the options available include:

Local + Timezone - the time format is composed of Local Time and the current timezone, for example 2023-04-28T09:37:05+03:00.

Local - the time format is represented only by the Local Time - 2023-04-28T09:37:05.

UTC - the time format is represented only by Local Time calculated as UTC time - 2023-04-28T06:37:05Z.

Display Type

Allows you to specify if the subtitles will be displayed on a particular type of display.

The value you need to enter may vary from system to system but "ClosedCaptions" is commonly accepted. If left empty the subtitles will be displayed on the main screen.

Subtitles XML file name

This is the name of the generated XML presentation data file. It is not necessary to enter the extension. If it is not specified the program adds .xml automatically.

Encoding

The available options are UTF-8 and UTF-16

Name Images as

The individual image files could be named in two ways by using the common naming convention "<prefix><sequential number>.png" or in the form of unique URN:UUID.

The second method may be required by some third party DCP generation products.

Images prefix

Available only for images export and if "Standard file name" is selected in the previous option.

The images file names are generated as "<prefix><sequential number>.png".

The <prefix> will automatically be replaced by the name specified here. If it contains any space characters, EZTitles will automatically replace them with underscore "_".

And if you want the images to be exported in a separate folder you can add the relative or absolute path before the image prefix's name like this: "images\<prefix>"

Crop Images

Allows full frame images, in the same resolution as the Project Settings, to be exported when the option is switched off. By default the exported images will be cropped to the size of the text block.

Output folder

The folder where all files are placed.

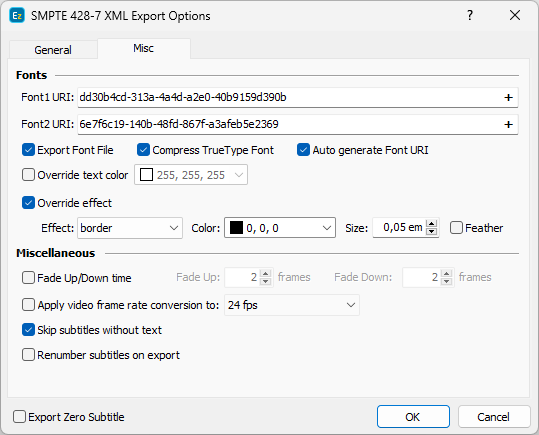

Font 1/2 URI

According the SMPTE 428-7 specification the fonts are identified by URI-s. If necessary you can write your own URI-s or any other text here or use the buttons on the right to generate new random ones.

Auto generate Font URI

Automatically generates new, unique URI's for the exported fonts.

Export Font File

The program can embed a .ttf font file together with the generated XML. Compress option can be used to reduce the True Type file`s size. Only the characters used in the subtitles are included in the font and some information like PCL printer tables is also removed.

Note: Only one font file will be exported when Font 1 and Font 2 typefaces are identical in Project Settings/Fonts.

Override Text Color

You can override the text color with the one specified to the right or you can use the colors as they are already set for the current project.

Override effect

The default option is None, while it can be also set to Border (draws colored border around each character) or Shadow (draws colored drop shadow around each character), effect's color can be selected from the palette.

Note: It's possible to change applied effect's (Border or Shadow) size or turn on additional Feather effect, when exporting ST428-7-2014 compliant file.

Fade Up/Down time

Shows fade up and fade down times measured in frames.

Apply frame rate conversion

If your video file is a standard PAL or NTSC created from the original 24 fps movie by using the standard techniques like 2:3 pulldown or speed-up you can use this option to convert the subtitles' timecode back to 24fps.

Skip Subtitles without text

If there are empty subtitles, which doesn't contain any text, they will not be exported.

Renumber subtitles on Export

Activating this option will renumber the exported subtitles in order to get sequential subtitle numbering in the output file. Sequential numbering may be required for compliance with different DCP packaging applications or DC systems in general.
