Image format

BMP 8 bit

File name

The name of the special text script file, which contains the In- and Out-cues, image placement, subtitled material title and other information.

Write full path

When this option is checked, the image file names in the script file are specified with their full path, e.g. D:\DVD Samples\Sample_0001.BMP.

If this option is not checked, only the file name with extension will be used: Sample_0001.BMP.

Image file prefix

The text value in this field together with the subsequent subtitle numbers forms individual image names.

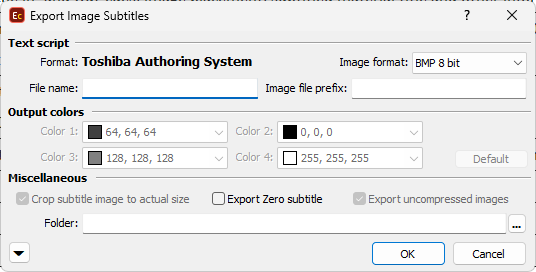

In the above figure the image names will be: Sample_0001.BMP, Sample_0002.BMP and so on.

Output Colors

In contrast to other classic 4-colors systems, the output colors for the Toshiba Authoring System are pre-defined and cannot be changed.

Crop subtitle image to actual size

Images exported in this format must be always be exported "cropped".

Export Zero Subtitle

Switch it on if you want to export the zero subtitle.

Export uncompressed images

Images exported in this format must be always be exported "uncompressed".

Folder

Selects the output folder for the exported script and image files.

Additional options

Provides a few more options:

Preview Text Script - Displays a preview window with the exported script's body.

Preview images - Opens a preview window and shows how the image will look like.
